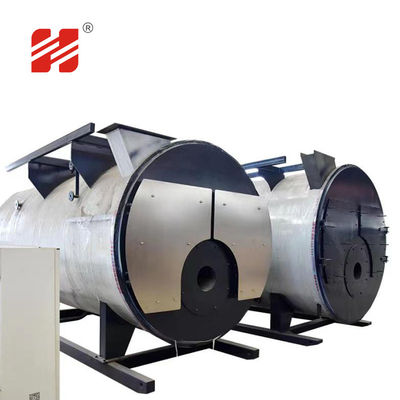

Horizontal Horizontal Type Fire Tube Industrial Oil / Natural Gas Steam Boiler

1 Set
MOQ
$11,689.00(>=1 Sets)
prezzo
Horizontal Horizontal Type Fire Tube Industrial Oil / Natural Gas Steam Boiler
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Energy & Mining, Industry, Food Factory, Chemical industry, Power plant, Heating, Petrochemical, Textile, Rubber, locomotive, Industrial and mining enterprises
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Boiler
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Steam Production: Max. 20t/h
Style: Horizontal
Fuel: Gas-fired
Output: Steam
Dimension(L*W*H): Can be customized
Weight: 1-10Ton
Warranty: 1 Year
Key Selling Points: Automatic
Keywords: Gas Fuel Steam Boiler
Application: Industrial Production
Design fuel: Natural Gas
Material: Special Boiler Steel Plate
Product name: Oil Steam Boiler
Item: Industry Elaectric Boiler
Capacity: 1-20t/h
Rated working pressure: 1-1.25 MPa
Boiler efficiency: 97-100%
Saturated steam temperature: 184-194℃
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Overseas service center available
Certificazione: CE
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Packaging Details: China factory excellent quality waste heat recovery thermal oil boiler 1.Standard export packing 2.According to customer requirements
Supply Ability: 500 Set/Sets per Month industry boiler
Descrizione di prodotto
Product Overview

Horizontal Type Fire Tube Industrial Oil/Natural Gas Fired Steam Boiler

By condensing the steam in the flue gas, the boiler that fully absorbs the waste heat of the boiler exhaust smoke and the latent heat of steam vaporization is called the condensing boiler. WNS series condensing oil and gas boiler with integrated design has low resistance and high efficiency, low carbon and energy saving, and low nitrogen combustion. With reasonable furnace size, the temperature field in the combustion chamber is evenly distributed, the flame is stable, and the combustion intensity is high, thereby greatly improving the combustion efficiency and reduce harmful gas emissions such as NOx.
The energy-saving condensing structure is adopted to realize the cascade utilization of high-temperature flue gas, which greatly improves the thermal efficiency of the boiler. The boiler adopts intelligent control system, fully automatic operation and high safety performance.
Model
Rated evaporation(t/h)
Rated working pressure(MPa)
Boiler efficiency(100%)
Saturated steam temperature(℃)
WNS1-1.0-Y（Q）
1
1
97-100
184
WNS2-1.25-Y（Q）
2
1.25
97-100
194
WNS3-1.25-Y（Q）
3
1.25
97-100
194
WNS4-1.25-Y（Q）
4
1.25
97-100
194
WNS6-1.25-Y（Q）
6
1.25
97-100
194
WNS8-1.25-Y（Q）
8
1.25
97-100
194
WNS10-1.25-Y（Q）
10
1.25
97-100
194
WNS15-1.25-Y（Q）
15
1.25
97-100
194
WNS20-1.25-Y（Q）
20
1.25
97-100
194
Our Company
Our Factory
Customer Case
Our Services
Certifications
Ready to Ship
FAQ
1.What can you get from us before quotation? A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue. 2.Below are the details need your confirmation before quotation? A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler? 2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil? 2.3. What is the requirement for oil/steam temperature and pressure? 3.What are the available fuel for the oil gas fired boiler? A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc. 4.How long can we get the reply with detailed information for our project ? A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
