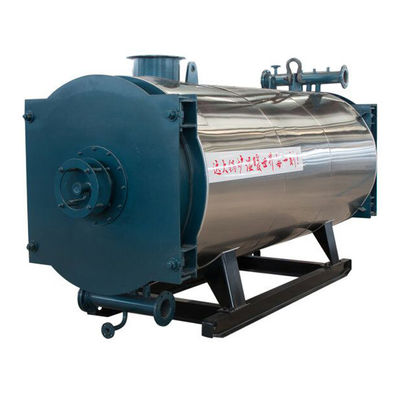

Horizontal Continental Kerosene Oil Burn Crude Oil Boilers Thermal Heaters For Sale

1.0 Sets
MOQ
$10,000.00(>=1 Sets)
prezzo
Horizontal Continental Kerosene Oil Burn Crude Oil Boilers Thermal Heaters For Sale
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Manufacturing Plant
Showroom Location: Indonesia, Thailand
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: boiler body
Condition: New
Type: Forced Circulation
Usage: Industrial
Structure: Coil type
Pressure: Low Pressure
Steam Production: 240-14000kw
Style: Horizontal
Fuel: Gas/oil
Output: thermal oil, hot oil
Dimension(L*W*H): Depend
Weight: 5~50ton
Warranty: 1 Year
Key Selling Points: long using life
After-sales Service Provided: Engineers available to service machinery overseas
Rated thermal power: 350kW, 700kW, 1400kW, 2100kW, 2900kW, 4500kW
Rated working pressure: 0.8mpa
Rated hot oil out/in temperature: 280/250 degree
Thermal efficiency: > 90%
Cover material: stainless steel
Design fuel: natural gas, LPG, CNG, LPG, diesel, light oil, heavy oil, etc.
Medium: thermal oil, hot oil, organic heat transfer material
Voltage: 50/60HZ as choosen
factory history: over 60 years
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: seaworthy standard packing
Supply Ability: 500 Set/Sets per Quarter
Descrizione di prodotto

Continental crude oil kerosene oil burn thermal oil boilers heaters for sale

Product Description
YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then  go back to the heating furnace.It can obtain a high  operating temperature at  low pressure and can do high-precision control on the medium.
This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a  convection heating surface.Fuel burn  fully in the combustion chamber, the  radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last,  the low temperature flue gas discharges to the aerosphere through the chimney.



Our boielr advantage

 For buying a boiler, customers cares most is boiler's quality,energy consumption and boiler maintanance, our boiler sloves these easily.



Technical datasheet



Model

YY(Q)W-

350Y(Q)

YY(Q)W-

700Y(Q)

YY(Q)W-

1400Y(Q)

YY(Q)W-

2100Y(Q)

 YY(Q)W-3000Y(Q)

YY(Q)W-

3500Y(Q)

YY(Q)W-

4200Y(Q)

 YY(Q)W-5600Y(Q) YY(Q)W-7000Y(Q)
Capacity KW  350  700  1400 2100  3000  3500  4200 5600 7000
Rated working pressure  Mpa                                                          0.8
Heat carrier output/inlet temperature  ℃                                               280/250;  320/290

Design

thermal effiency

   %                                                       >96

Fuel con

sump.

 Natural gas Nm3/h 42.13 84.26 169.11 259.6 369.57 431.92 516.38 676.5 830.73
Diesel kg/h 34.5 69.1 138.78 212.52 302.39 353.31 422.57 560.24 673.82
Size Meter

  3000

*1000

*2000

  3200

*1300

*2050

  3710

*1524

*2150

  5600

*2400

*3170

  5600

*2400

*3170

  5900

*2382

*3560

  6630

*3200

*3050

  7200

*3550

*3920

  8090

*3675

*4000
Weight Ton  2.0  3.0  4.0  6  10 10.2  16.5 23.6 28



Our cases

 For our thermal oil boiler's good quality and our company's good after sales service, we have hundreds of projects all around the world. They are mainly used in plywood factory,bitumen(asphalt) factory, textile factory, refinery factory,food factory,etc.

Packaging & Shipping

1. Way of delivery: by Sea or Railway or truck based on needs

2. Shipping model: by normal container and flat rack or bulk cargo based on differnent capacity. We have stable and experienced cooperate shipping company, and we will suggest suitable container.

3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods.

4. Packing: nude for boiler main part in nude, accessories in export-use wooden box.

5. Payment Terms: T/T, LC; 30% deposits; 70% balance before delivery.



Related products



Dear friend, if what you need is coal/biomass fired thermal oil boiler/heater, pls click the following picture to check more specifics.



Company Information
Henan Yuanda Boiler Co., Ltd,Class A boiler manufacturer. Established in 1956,locates in Xihua County, Henan province, the central part of China.

We are professional manufacturer and supplier for  industrial boilers, with more than 60 years' experience in boiler design, production, installation and commissioning. Our company is one of  the enterprises which obtained boiler manufacturing license in China.We have our own R & D team and cooperate with famous high-tech research institutes at the same time, which ensures our products in the forefront of technology and science.

By the end of 2018, we have exports to 86 countries worldwide and have successfully supplied tailor made solutions for over 100,000 customers.

Our main products are:

(1)WNS Gas oil fired steam boiler and hot water boiler

(2) DZL / DZH Coal / wood fired steam boiler and hot water boiler

(3) SZL Biomass fired steam boiler and hot water boiler

(4) YY(Q)W Gas oil fired thermal oil boiler

(5) YLW Coal biomass fired thermal oil boiler

(6) All kinds of pressure vessels

Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
