Caratteristiche

Specificazioni

Condition: New

Warranty: 1.5 years

Applicable Industries: Energy & Mining

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Type: Heating Elements

Keywords: boiler drum

Application: power plant thermal oil boiler

Product name: power plant thermal oil boiler boiler drum

Color: Customer's Requirement

Material: SA213T22 alloy steel

After Warranty Service: No service

Local ServiceÂ Location: None

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Packing: Metal Frame

Supply Ability: 100 Ton/Tons per Month

Descrizione di prodotto

Product Description

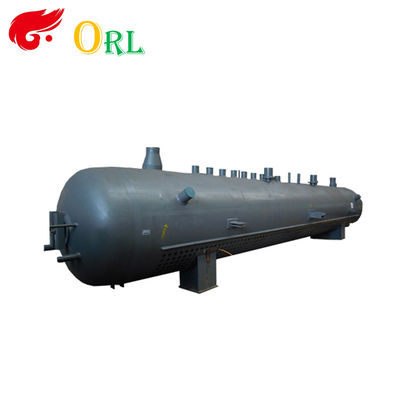

SA213T22 alloy steel power plant thermal oil boiler spare parts boiler drum

Description

In the water tube boiler the upper drum (Boiler steam drum) provides for separation of steam from water. It also provides liquid holdup capacity (typically 10 to 60 seconds) to allow for a dynamic response to load changes without losing liquid in the downcomer and riser tubes. The size of the steam drum is determined by the volume required for a clean separation between steam and water to produce a dry saturated steam, it also provides an adequate amount of steam storage. The steam drum is also called the upper drum.

Product parameter

Product Name	Boiler Steam Drum ( Steam Water Separator )
Applied Area	Natural circulation boiler
Drum Shell Plate Material	- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70 - Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material	Same as shell
Nozzle Tube Material	As per design
Standard	China GB, ASME, EN
Manufacturer Grade	China A Grade, ABS Certificated, TUV Certificated
Working Temperature	Saturation Temperature at rated pressure
Working Pressure	1.6 MPa ~ 22.5 MPa
Shell Plate Thickness (Drum Wall Thickness)	≤150 mm
Drum Diameter	≤3,200 mm
Drum Length	≤25,000 mm
Welding	- Shell : SMAW, SAW - Nozzle tube : GTAW (TIG), SMAW
Welding NDT	- Shell longitudinal seam : 100% RT, 100% UT - Shell circumferential seam : 100% RT, 15% UT - Nozzle tube angle seam : 100% UT, 100% MT
