Production of Biomass Pellet Biomass Pulp Pellet Pressing Grass Pellet Forestry Waste Pellet Machine

1 set
MOQ
Production of Biomass Pellet Biomass Pulp Pellet Pressing Grass Pellet Forestry Waste Pellet Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Raw Material Processed: Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks
Pellet Diameter (mm): 6 - 8
Output (kg/h): 1000 - 4000 kg/h
Voltage: 380V or other
Dimension(L*W*H): 1850*1260*1780mm
Power (kW): 55KW-220KW
Warranty: 2 years
Applicable Industries: Manufacturing Plant, Retail, Energy & Mining, fuel
Key Selling Points: Long Service Life
Weight (KG): 4500 KG
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Bearing, Motor, Gearbox, reducer
Name: wood pellet machine
Raw material: Sawdust\straw\rice Husk\wood Waste
Application: Producing Biomass Pellet
Capacity: 1-4t/h
Pellet size: 6-12mm
Color: Customers' Demands
Key words: Pellet Mil
Motor: Chinese Brand
Weight: 4.5 Ton
Power(W): 55KW-220KW
After-sales Service Provided: Online support
After Warranty Service: Online support, Field maintenance and repair service
Local Service Location: Indonesia, Thailand, Malaysia, Morocco
Showroom Location: Philippines, Indonesia, Thailand, Malaysia
Certificazione: CE ISO
Informazioni di base
Certificazione: CE ISO
Termini di pagamento e spedizione
Packaging Details: Wooden packing
Supply Ability: 80 Set/Sets per Month
Descrizione di prodotto

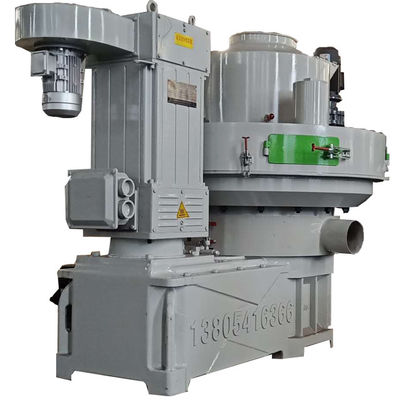

Biomass pulp pellet pressing grass pellet forestry waste pellet machine
LKJ series 560,700,850 types of wood pellet machine and pellet line as your optional

Product Description



Product Description of wood pellet machine

Six Characteristics of Taichang Brand the Newest Model Wood Pellet Machine:

1.Compactness is highly improved through machine design. It uses modular design to increase
operational reliability by 4-6 times.
2.It uses the excellent non-contact and high abrasion resistance labyrinth sealing device.
3.Increase the surface area of the reducer, adopting forced air cooling and new type deflector
shield which has good heat dissipation performance.
4.The lubrication of the whole machine is designed on the basis of the lower maximum allowable
oil temperature, which improves the operation reliability. Meanwhile, the maintenance cost is
reduced because of the extension of the oil change cycle.
5.Break the situation of wood pellet machine borrowing the traditional industrial reducer. We use
special reducer for wood pellet machine.
6.Break the situation of wood pellet machine borrowing the ordinary motor. We use special motor
for wood pellet machine.
 Technical parameter of new design special wood pellet machine
Model LKJ850
Type Vertical ring die type
Output 3-4t/h
Main Motor  185/220kw
Lubrication pump Motor  0.55kw
Pellet collecting disc Motor 1.5kw
Independent cooling Motor 2.2kw
Material of Mould  Stainless steel 4Cr13
Roller wraps 55# steel
Inlet&Feeding Cover SS304
Pellet Diameter  6mm,8mm,10mm, 12mm
Pellet Length Can be customized made
Pellet Density 1.0-1.4g/cm3

 Other Models
Type Power(kw) Pellets(mm) Modelφ(mm) Output(t/h) Dimension(mm)
LKJ560 90/132+1.1+1.5+0.55+2.2 φ6-12 φ548 1-2 1600*1210*1700
LKJ700 132/160+1.+1.5+0.55+2.2 φ6-12 φ700 2-3 1650*1261*1783
LKJ850 185+1.1+1.5+0.55+3 φ6-12 φ850 3-3.5 1800*1450*1850

Details Images

Special motor and reducer for wood pelleting machine





Wood pellet line

Production Process

The pellet fuel after molding is a new type of bio-energy, which can replace wood,
raw coal, fuel oil, liquefied gas, etc., and is widely used in heating, living stoves,
hot water boilers, industrial boilers, biomass power plants, etc.

Our customers:

Our products exported to Europe, North America, South America, Southeast Asia and
Africa markets, received unanimous praise from foreign customers.



Company Information

 Company strength

Our Services

 Company After-Service

Packaging & Shipping

 Our transport
We have reached cooperation with many logistics companies to ensure that our
customers are provided with lower freight prices and better transportation guarantee.



FAQ
