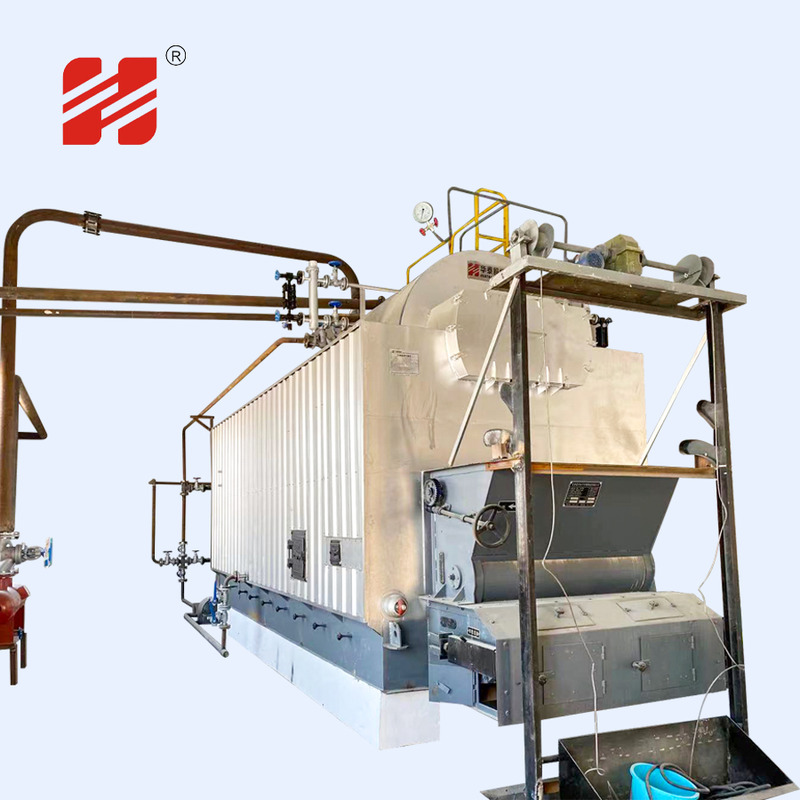

Wood Chips Biomass Pellet Coal Fired Industrial Steam Boiler

DZL series biomass horizontal three-pass water-fire tube chain grate boiler is a kind of quick installation boiler. The boiler body is arranged in a single drum in the longitudinal direction, and threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, and the drum and the water walls on both sides form a furnace radiant heating surface. The combustion equipment adopts light chain grate; the entire quick installation form has been delivered. Electric control realizes stepless speed regulation, limit parameter alarm and interlock protection.

Advantages:

. Wide fuel adaptability: suitable for biomass molding pellets, rice husks, wood chips, corn cobs, sawdust, etc.
. Fully burning and high-efficiency grate: Reasonable furnace design and full combustion of fuel can effectively eliminate black smoke.
. High safety, long-lasting durability: The water supply adopts microcomputer control and automatic water inlet, the life of the boiler in normal use is more than 20 years.
. High degree of automation: easy maintenance, fewer operation and maintenance personnel are required, which saves your investment costs while ensuring stable operation.

Model	Rated evaporation(MW)	Rated working pressure(MPa)	Saturated steam temperature(℃)	Boiler efficiency(%)
DZL1-1.0/1.25/1.6	1	1.0/1.25/1.6	184/194/204	84.45
DZL2-1.0/1.25/1.6	2	1.0/1.25/1.6	184/194/204	84.72
DZL4-1.0/1.25/1.6	4	1.0/1.25/1.6	184/194/204	85.56
DZL6-1.0/1.25/1.6	6	1.0/1.25/1.6	184/194/204	85.94
DZL10-1.0/1.25/1.6	10	1.0/1.25/1.6	184/194/204	86.23

FAQ:

1.What can you get from us before quotation?

A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.

2.Below are the details need your confirmation before quotation?

A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?

2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?

2.3. What is the requirement for oil/steam temperature and pressure?

3.What are the available fuel for the oil gas fired boiler?

A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

4.How long can we get the reply with detailed information for our project ?

A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
